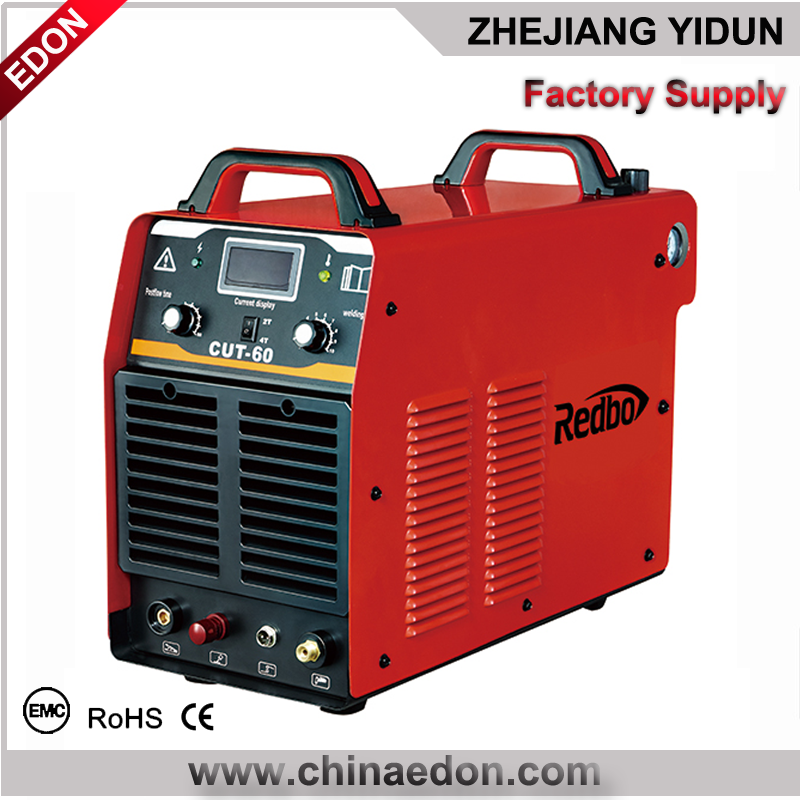

380V air plasma cutter cut-60/100 60A 100A

FOB Reference Price:Get Latest Price
US $240-500 / Sets | 20 Set/Sets cutting machine (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
eDON cutting machine
Model Number:
Cut-60
Arc Current:
20-60 A
Pulse Frequency:
60%
Pilot Arc Current:
9
Rated Duty Cycle:
60%
Motor Type:
DC Motor
Dimensions:
600*285*485
Usage:
cutting
Voltage:
380V
Power(W):
7.7kva
Certification:
CE,CCC,ISO9001
Warranty:
12 MONTHS
After-sales Service Provided:
No overseas service provided
shell:
metal
inverter:
igbt
motor:
dc
duty cycle:
60%
color:
red and black
power:
380v
max cutting thickness:
0.1-23mm
no-load voltage:
290v
load voltage:
104
power factor:
0.93
Supply Ability
Supply Ability:
9000 Set/Sets per Month cutting machine
Packaging & Delivery
Packaging Details
one cutting machine in one Standard Export Carton.
Port
Ningbo/Shanghai
Lead Time :
cutting machine Within 30 days
Introduction

Features:





Advanced IGBT inverter technology ,Advanced PWM control technology,strong anti-interference



ablity,improving the performance of cutting machines significantly.



Compared with the traditional cutting machine,arc success rate is high,arc voltage is high,energy



concentration.



 Parameter:



ITEMCUT-40CUT-60CUT-60CUT-100
Main voltage(V)1PH2201PH2201PH2201PH220
Frequency(HZ)50/6050/6050/6050/60
Rated Input capacity997..915.2
Max No-load voltage(V)270290290290
Current range(A)15-4020-6020-6025-100
Rated Duty cycle(%)60356060
Cutting thickness12252535
Insulation classFFFF
Protection DegreeIP21SIP21SIP21SIP21S
Power factor0.730.730.930.93
Efficiency(%)85858585
Dimension(MM)440*160*310500*215*380600*285*485600*285*485
Weight(KG)102023.224



































 1photobank_3_234



5689







Product Description:



1.Suitable for cutting stainless steel, copper, carbon steel and aluminum, and other metals.



2.Easy to cut thick metals in a fast and sconomical way.



3.Easy to operate, smooth cutting performance.



4.HF-non-touch arc starting function available for CUT70C and CUT 100C UPON request.







ModelExpertCut-60ExpertCut-100
Input voltage(V)380380
Rated input capacity(Kva)7.715.2
No-load voltage(V)290290
Load voltage(V)104120
Power factor0.930.93
Output current(A)20-6025-100
Duty cycle60%60%
Suggested Pressure(Mpa)0.4-0.60.4-0.7
Arc strtHFHF
Max Cutting thickness(mm)0.1-230.1-35
Protection classIP21IP21
Weight(Kg)23.224
Dimensions(mm)600*285*485600*285*485
