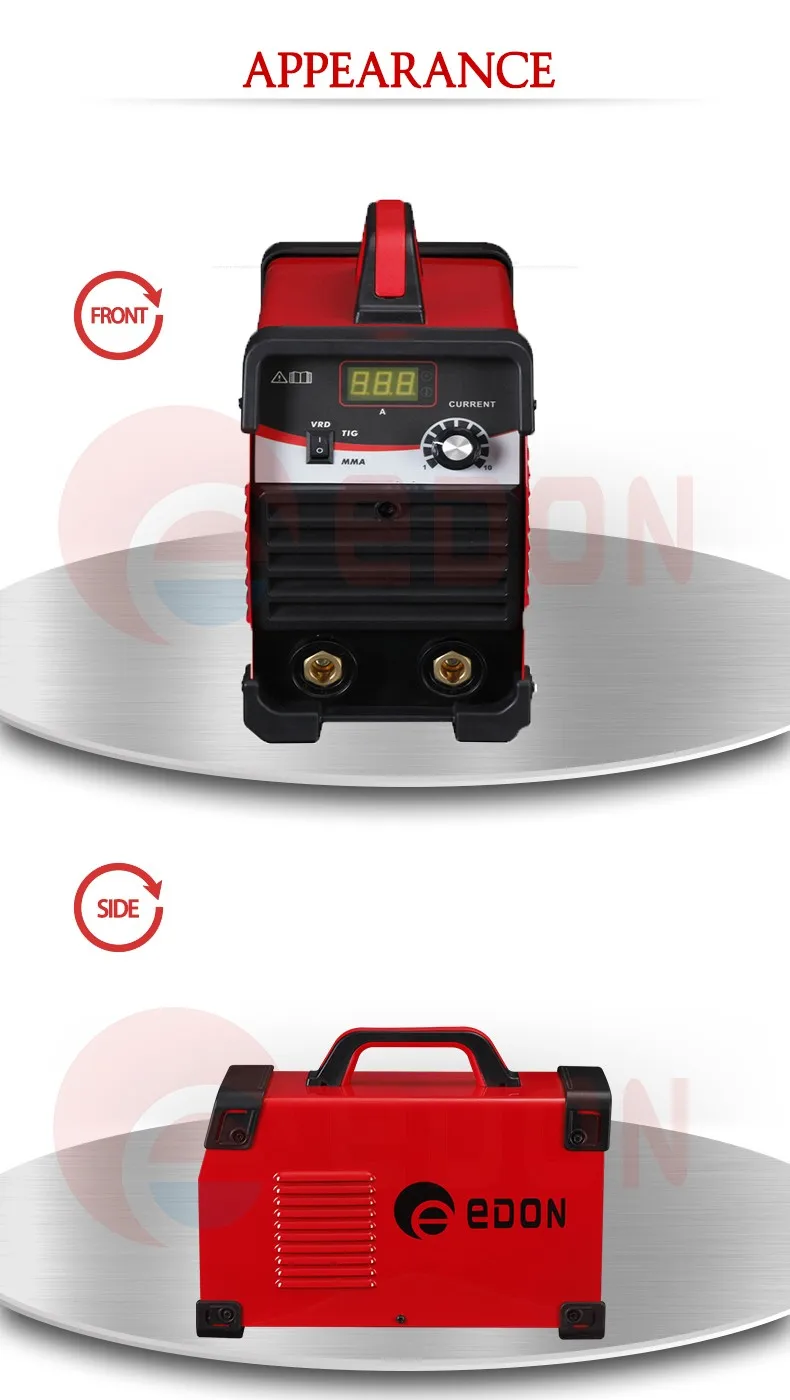

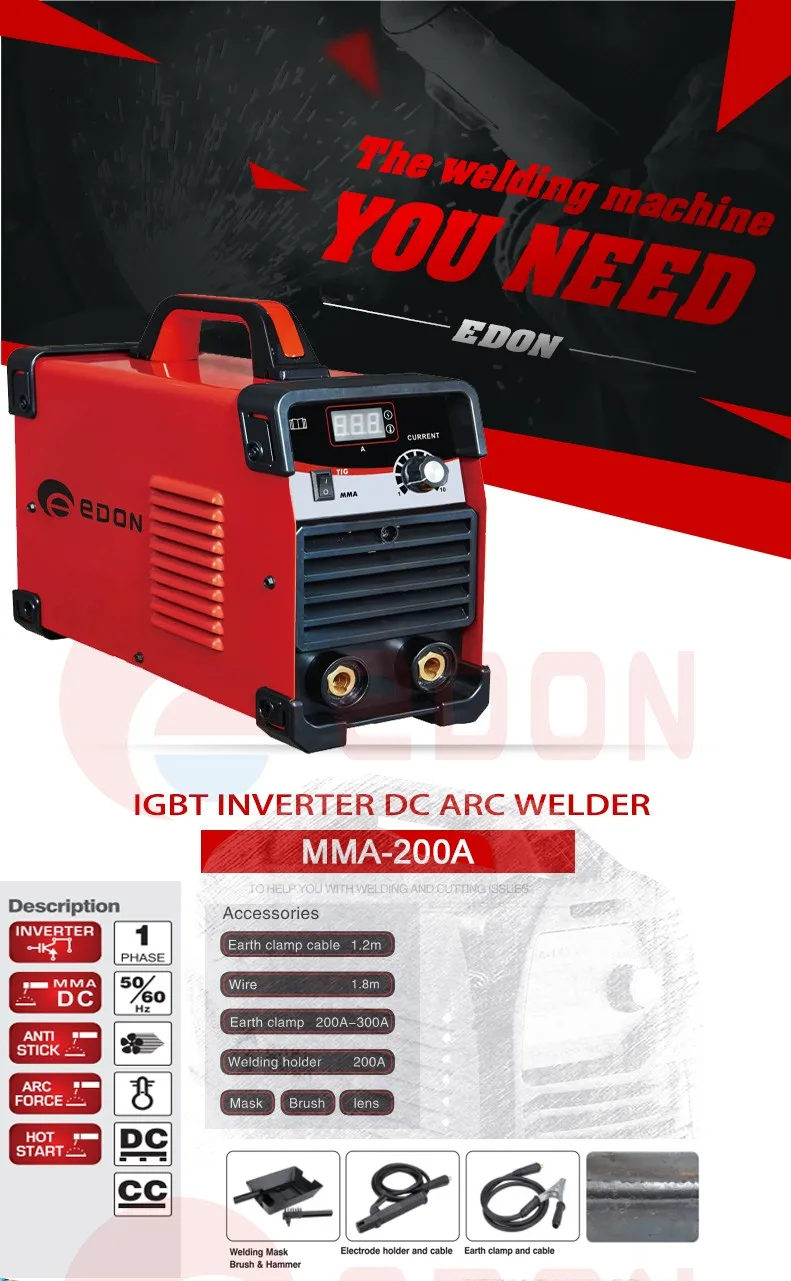

EDON 1ph singe phase IGBT inverter electrode welder welding machine MMA-200

FOB Reference Price:Get Latest Price
US $85-95 / Sets | 100 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
EDON
Model Number:
MMA-160/180/200
Arc Current:
20-200A
Pulse Frequency:
50/60HZ
Pilot Arc Current:
20amps
Rated Duty Cycle:
60%
Motor Type:
inverter
Dimensions:
460*155*275 mm
Usage:
welding steel
Voltage:
220V ± 15%
Power(W):
9KVA
Certification:
CE CCC RoHS Emc LVD TUV
Rated input current:
41A
No-load voltage:
95V
Rated duty cycle:
200A at 60%, 155A at 100%
Function:
arc-force,vrd,anti-stick,hot-start
Power factor:
cos0.73
Efficiency:
85%
Electrode size:
1.6 to 4.0mm
Weight:
6.2KGS
Type:
IGBT
Packing:
Standard Carton Packing
After-sales Service Provided:
Overseas service center available
Warranty:
1 Year
Supply Ability
Supply Ability:
50000 Set/Sets per Month
Packaging & Delivery
Packaging Details
portable welding machine price
All things packed into normal exporting paper carton, with moded foams protecting the machie.
*above 300pc we offer free color box
Port
NINGBO/SHANGHAI
Lead Time :
within 35days



mma-200 single phase portable arc welding machine inverter welding machine price

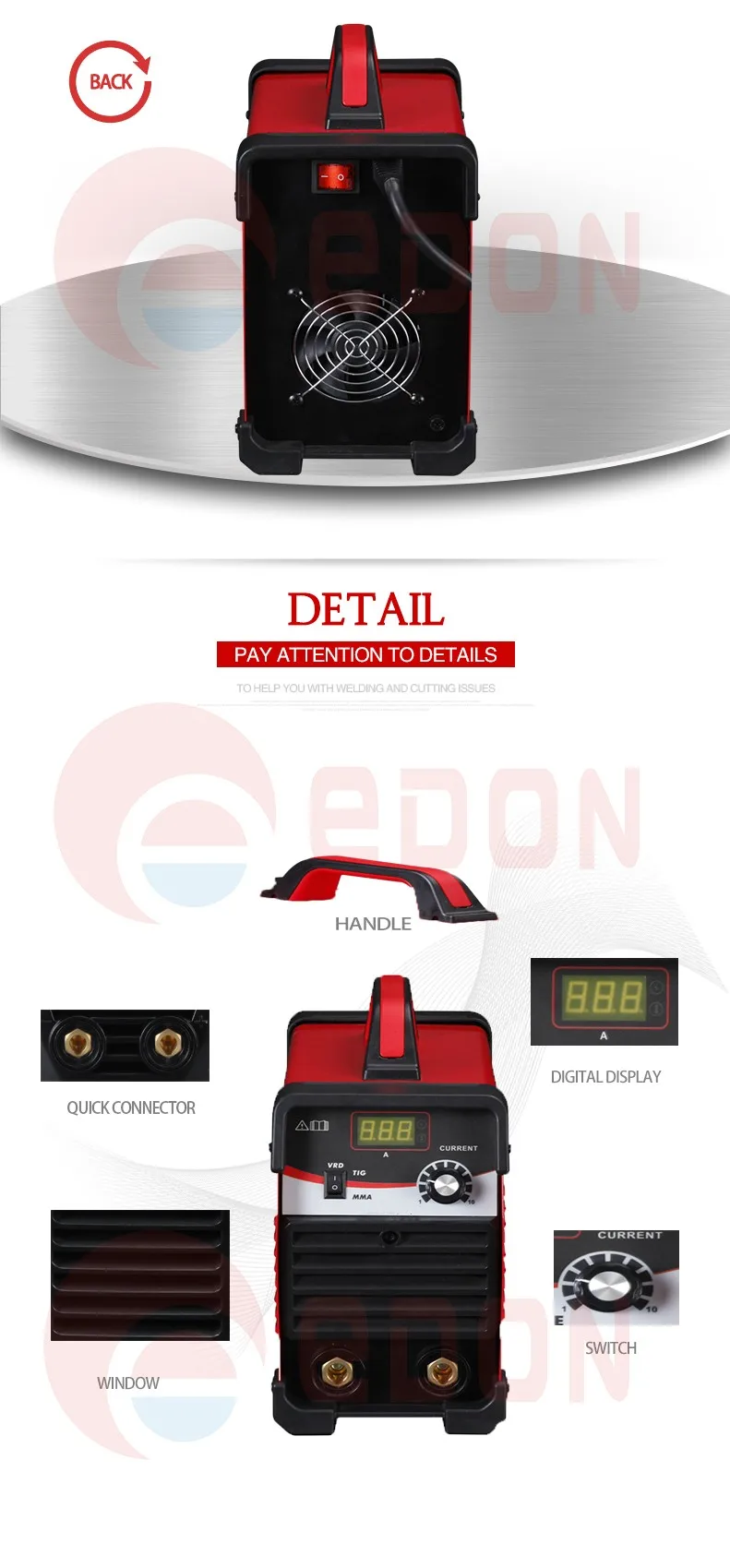

Features:

1.  IGBT inverter technology: Adopt advanced inverter technology, allows the welder to be smaller size and lighter weight around 5KG. Meanwhile guarantee its high performance.

2.  Portable and Handy:  suitable for small scale construction work,upholster industry,high altitude,field operation,repairing and the home hobbyist .

3.  Arc Force: help start are quickly, keep are stable during welding

4.  Fan cooled: Minimize the intake of particle content,improve the duty

cycle,welding performance and extending the life.

5.  Overload protection: Perfect self-protective function in cases of over-voltage,

low-voltage,over-current, over-heat;safe and reliable.

6.  Suit for all kinds of basic welding rod,including acidity and alkalescence electrode.



Parameter:



ITEM

        MMA-130

 MMA-160

 MMA-180

 MMA-200



Voltage/frequency

AC220V±10%50Hz/60Hz

AC220V±10%50Hz/60Hz

AC220V±10%50Hz/60Hz

AC220V±10%50Hz/60Hz

Rate input capacity(KVA)

4.1

5.6

6.8

7.3

Output current range(A)

20-130

20-160

20-180

20-200

Duty cycle(%)

35

60

60

60

Output voltage(V)

25.6

26.4

27.2

28

No-load voltage(V)

56

60

60

60

Efficiency(%)

85

85

85

85

Power factor(COS)

0.93

0.93

0.93

0.93

Usable electrodes(mm)

1.6-3.2

1.6-4.0

1.6-4.0

1.6-5.0

Net weight(kg)

5.6

6.7

7.6

8

Protection class

IP21

IP21

IP21

IP21

Insulation class

F

F

F

F

Dimension(mm)

290*133*204

375*155*295

372*155*295

372*155*295
